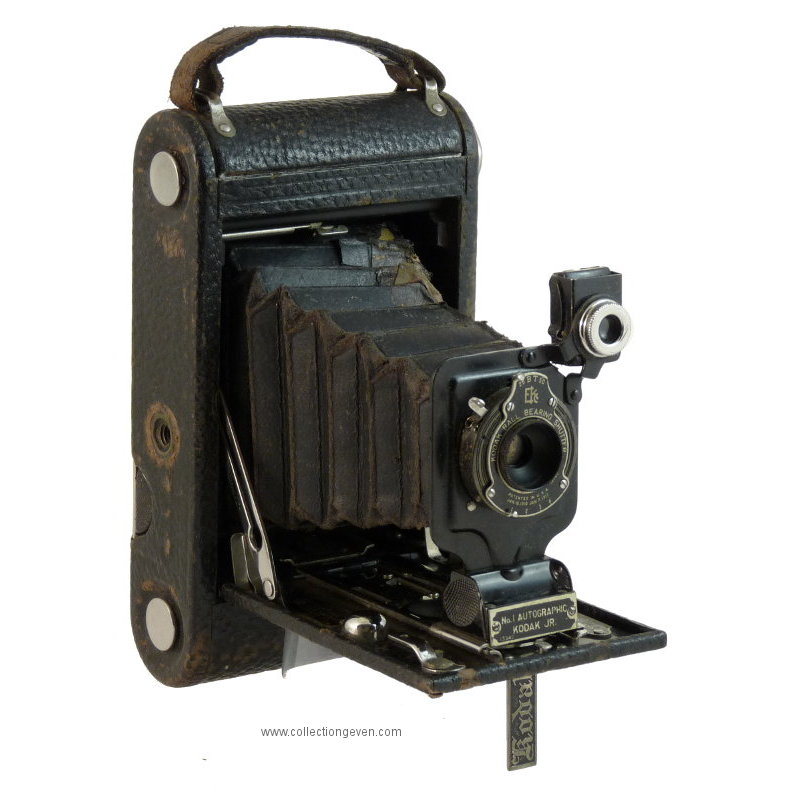

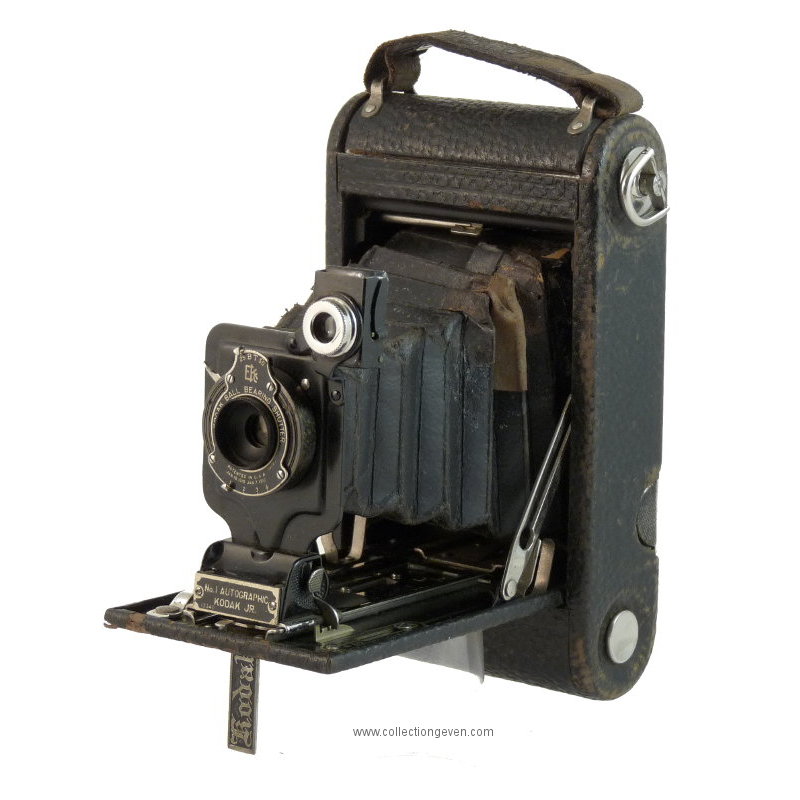

N° 1 Autographic Kodak Junior (Kodak) - 1917
(with focus)
(APP2343)
(with focus)
(APP2343)
Les N° 1 Autographic Kodak Junior ont été fabriqués de 12.1914 à 1.1927. Cette variante avec obturateur Ball Bearing et avec mise au point (fixed focus) a été fabriquée entre 1917 et 1919 (voir datation plus bas). |
Nom : | N° 1 Autographic Kodak Junior | |||
Marque : | KODAK | Fabricant : | Eastman Kodak Company | |
Publicité : | - | |||
Pays : | États-Unis | |||
Date de début : | 1917 | Date de fin : | 1919 | |
Type : | folding 6 x 9 (FMFO) | |||
Dimensions, fermé : | 103 x 172 x 42 mm | Ouvert : | 103 x 172 x 142 mm | |
Poids : | 613 g | |||
Matière : | bois gainé, métal | Couleur : | noir | |
Surf. sensible : | film 120 | Format : | 6 x 9 cm (57 x 82 mm réels) | |
Objectif : | ||||
- Nom : | - | Type : | achromatique | |
- Marque : | Kodak | |||
- Ouverture : | ~ 11 | Focale : | ~ 110 mm | |
- Fixation : | rentrant à soufflet | Monture : | non interchangeable | |
Diaphragme : | ||||
- Type : | iris | |||
- Ouverture : | marqué 1, 2, 3, 4 (~ 1:11 à 1:32) | |||
Obturateur : | ||||

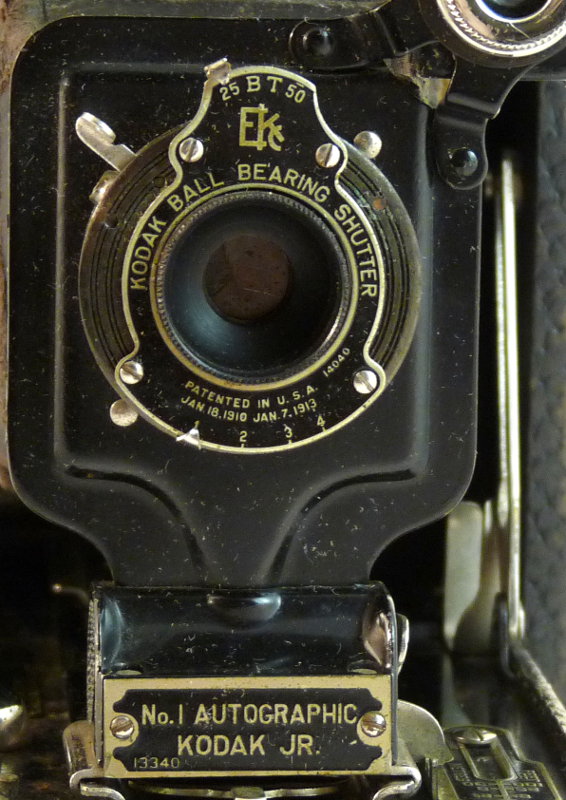

- Nom : | Ball Bearing | Type : | central | |
- Marque : | Kodak | |||
- Vitesses : | 1/25, 1/50 s | Pose : | B, T | |
- Retardateur : | non | |||
- Armement : | auto-armant | |||
Film, plaque : | ||||
- Compte-vues 1 : | fenêtre inactinique sans cache | |||
- Protection 2 expos : | non | |||
- Avancement : | clé | |||
Flash : | ||||
- Synchro : | non | |||
- Flash interne : | non | |||
Posemètre : | ||||
- Type : | sans | |||
- Plage : | - | |||
- Automatisme : | manuel | |||
Mise au point : | ||||

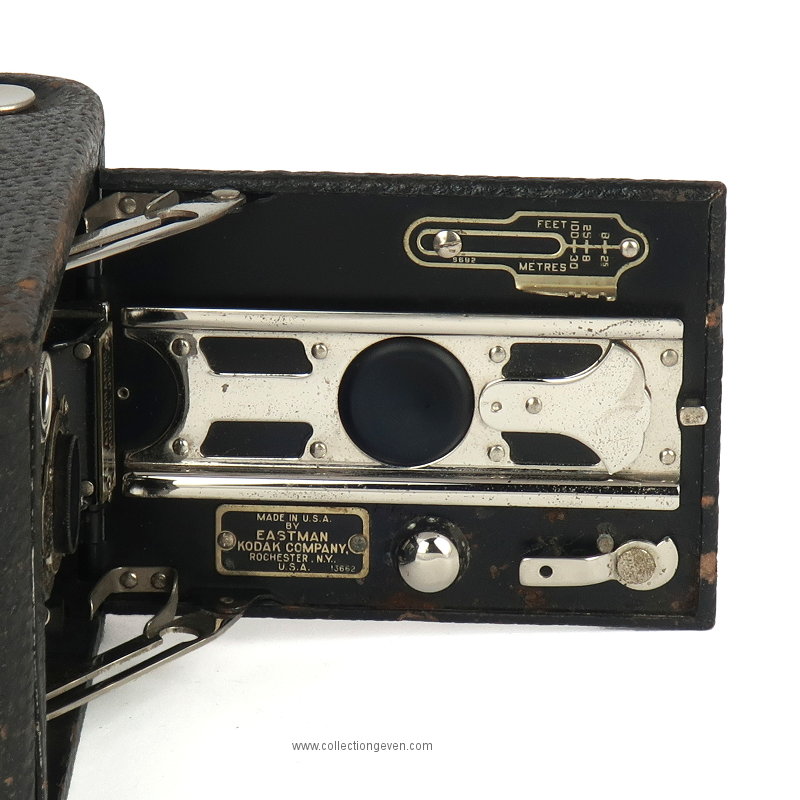

- Type : | déplacement de la platine porte-objectif | Minimum : | 3 m (10 ft) | |
- Télémètre : | non | |||
Viseurs : | ||||
- Viseur 1 : | viseur redresseur clair pivotant | |||
Autres : | ||||
Niveau à bulle : | XXX | |||
Porte-acc. 1 : | - | Porte-acc. 2 : | - | |
Écrou de pied : | 1/4 " (x2) | |||
Déc. vertical : | - | Horizontal : | - | |
Bascule avant : | - | Arrière : | - |
Commentaires : | « N° 1 Kodak Junior, Model A » à l'intérieur | |||
Liens web : | Sur le site collection-appareils.fr : voir ici | |||
- |
Appareil présenté : | ||||
N° de série : | 268745 | |||
N° objectif : | - | N° obturateur : | - | |
Accessoires : | Déclencheur souple court. | |||
Notice : | - | |||
Commentaires : | Datation de cet appareil (réf BIB0271) : - Ball Bearing : 1914 - 1924, - Achromatic, focus : 1916-1927, - Brevet le plus récent dans le dos de l'appareil : 6.1917, - Bouton d'ouverture caché : avant 8.1919. | |||
N° inventaire : | APP2343_01 |
