301/318

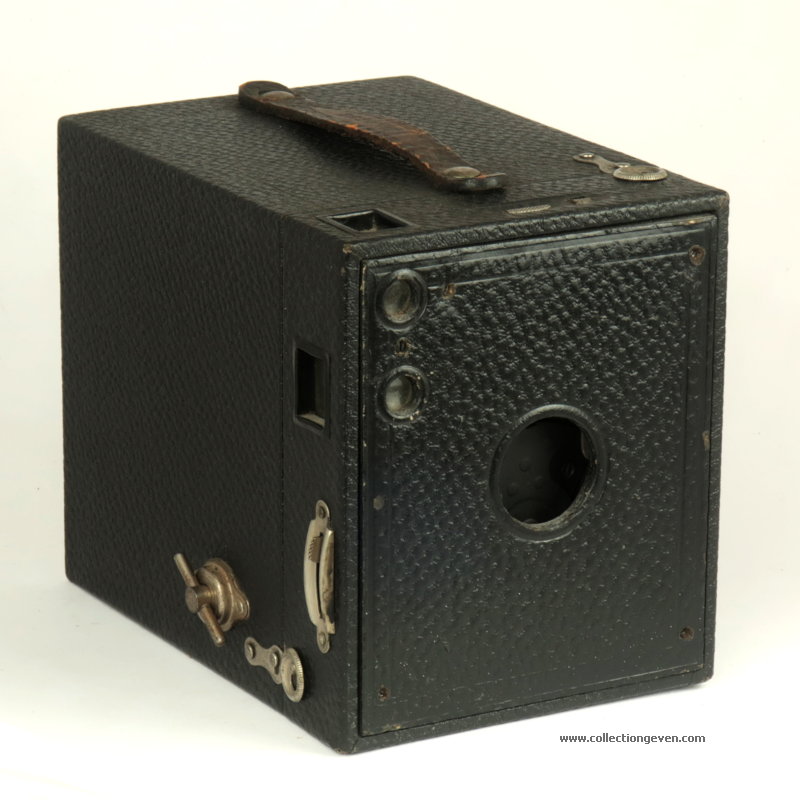

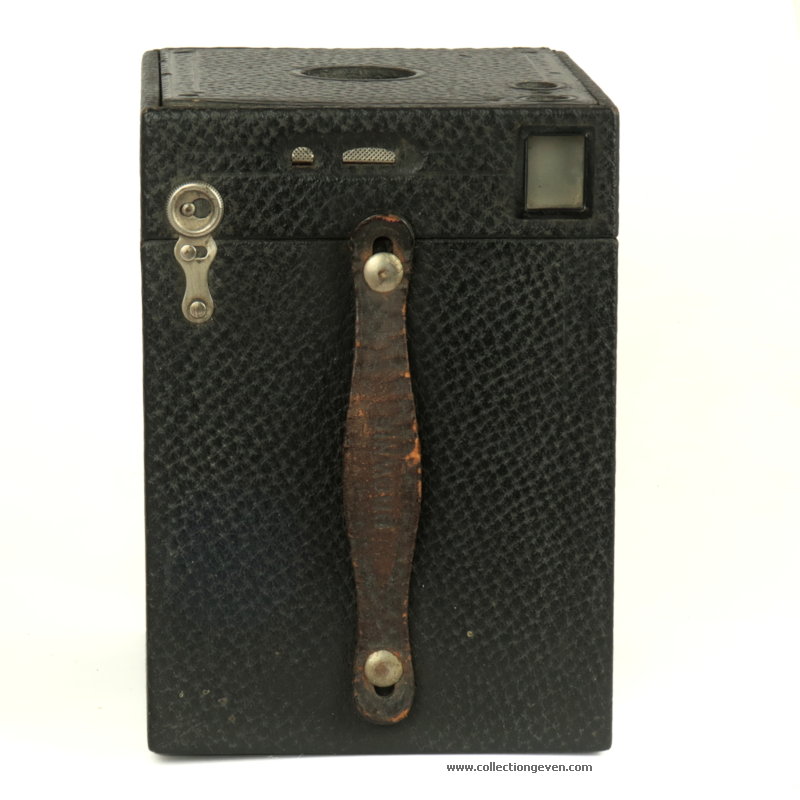

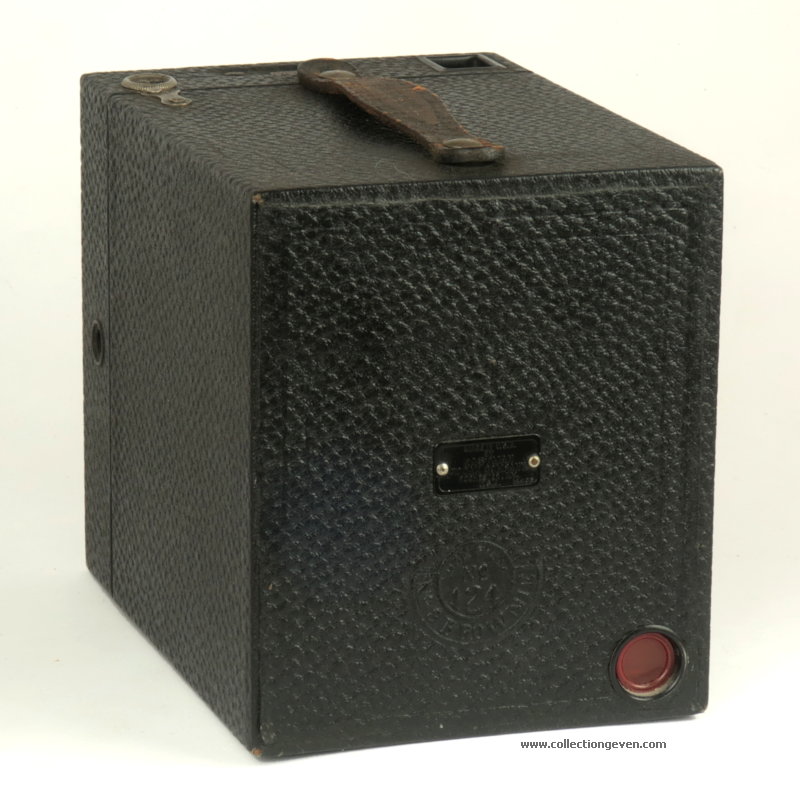

N° 3 Brownie (Kodak) - 1917
(3,25 x 4,25 ", var. 1)
(APP3213)
(3,25 x 4,25 ", var. 1)
(APP3213)

Le N° 3 Brownie a été fabriqué par Kodak de de 11.1908 à 1934, sous diverses variantes. |
Variante 1 : • Ressorts de tension de film portant sur les extrémités de la bobine plutôt qu'au centre. |
Nom : | N° 3 Brownie, model B | |||
Marque : | KODAK | Fabricant : | Eastman Kodak Company | |
Publicité : | - | |||
Pays : | États-Unis | |||
Date de début : | - 1917 | Date de fin : | 9999 | |
Type : | box 8 x 10,5 (XFFR) | |||
Dimensions, fermé : | 123 x 137 x 160 mm | Ouvert : | - | |
Poids : | 688 g | |||
Matière : | bois gainé, métal | Couleur : | noir | |
Surf. sensible : | film 124 | Format : | 82,5 x 108 mm | |
Objectif : | ||||
- Nom : | - | Type : | achromatique | |
- Marque : | XXX | |||
- Ouverture : | XXX | Focale : | XXX | |
- Fixation : | fixe | Monture : | non interchangeable | |
Diaphragme : | ||||
- Type : | coulissant | |||
- Ouverture : | 3 ouvertures | |||
Obturateur : | ||||
- Nom : | - | Type : | rotatif | |
- Marque : | XXX | |||
- Vitesses : | 1 vitesse | Pose : | T | |
- Retardateur : | non | |||
- Armement : | auto-armant | |||
Film, plaque : | ||||
- Compte-vues 1 : | fenêtre inactinique sans cache | |||
- Protection 2 expos : | non | |||
- Avancement : | clé | |||
Flash : | ||||
- Synchro : | non | |||
- Flash interne : | non | |||
Posemètre : | ||||
- Type : | sans | |||
- Plage : | - | |||
- Automatisme : | manuel | |||
Mise au point : | ||||
- Type : | fixe | Minimum : | XXX | |
- Télémètre : | non | |||
Viseurs : | ||||
- Viseur 1 : | viseur redresseur dépoli fixe | |||
- Viseur 2 : | viseur redresseur dépoli fixe | |||
Autres : | ||||
Niveau à bulle : | non | |||
Porte-acc. 1 : | - | Porte-acc. 2 : | - | |
Écrou de pied : | 1/4 " (x2) | |||
Déc. vertical : | - | Horizontal : | - | |
Bascule avant : | - | Arrière : | - |

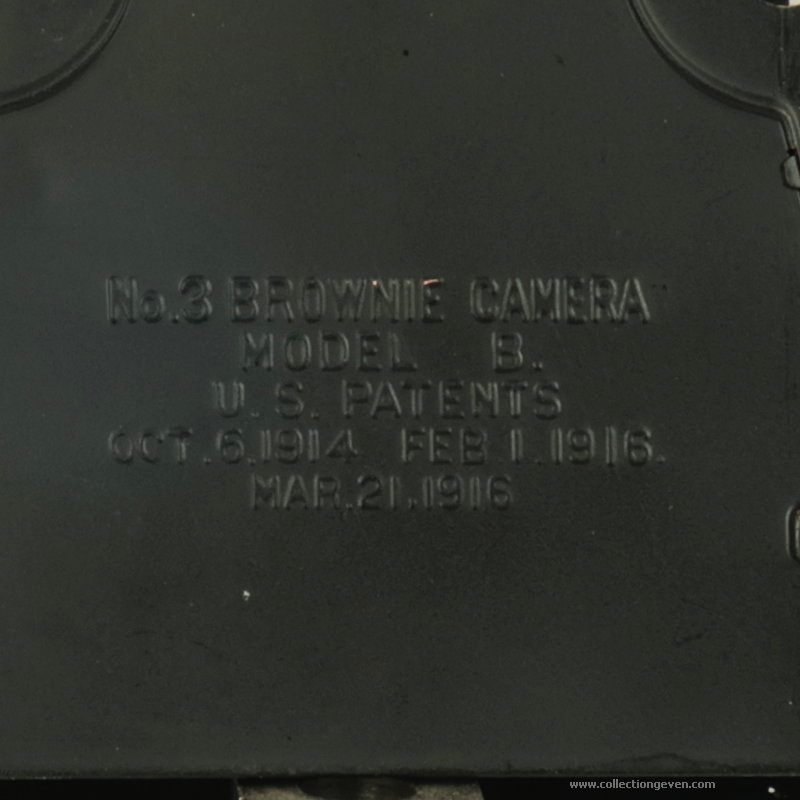

Commentaires : | • Indication des brevets du 6.10.1914, 1.2.1916, 21.3.916. | |||
Liens web : | Sur le site collection-appareils.fr : voir ici | |||
- |
Appareil présenté : | ||||
N° de série : | - | |||
N° objectif : | - | N° obturateur : | - | |
Accessoires : | - | |||
Notice : | - | |||
Commentaires : | - | |||
N° inventaire : | APP3213_01 |
