N° 3 Kodak Series III (Kodak) - 1926
(APP3230)
(APP3230)

Le N° 3 Kodak Series III a été fabriqué cd 5.1926 à 1934. Ce modèle est un des tous premiers. Dos Autographic type 3 et support pour stylet à l'avant, à gauche de l'objectif. |

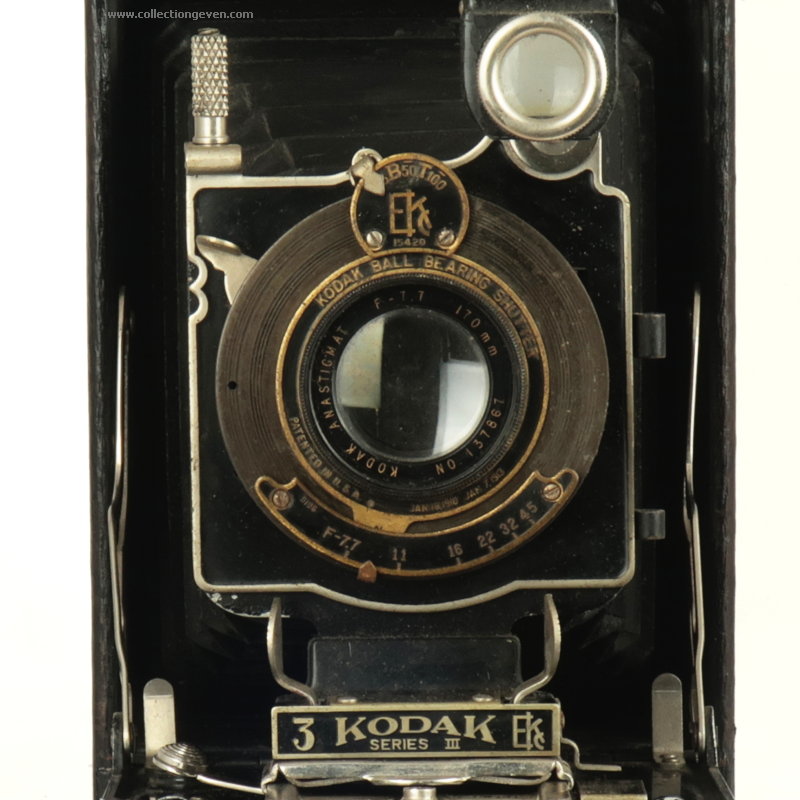

Variante 1 : - Objectif Kodak Anastigmat 7,7/170 mm. - Obturateur Ball Bearing. |
Nom : | N° 3 Kodak Seroes III | |||
Marque : | KODAK | Fabricant : | Eastman Kodak Co. | |
Publicité : | - | |||
Pays : | États-Unis | |||
Date de début : | 5 1926 | Date de fin : | c. 1926 | |
Type : | folding 8 x 10,5 (FMFR) | |||
Dimensions, fermé : | 110 x 210 x 3 mm | Ouvert : | 110 x 210 x 172 mm | |
Poids : | 896 g | |||
Matière : | métal gainé | Couleur : | noir | |
Surf. sensible : | film 118 | Format : | 8 x 10,5 cm | |
Objectif : | ||||
- Nom : | Anastigmat | Type : | XXX | |
- Marque : | Kodak | |||
- Ouverture : | 7,7 | Focale : | 170 mm | |
- Fixation : | rentrant à soufflet | Monture : | non interchangeable | |
Diaphragme : | ||||
- Type : | iris | |||
- Ouverture : | 7,7 à 45 | |||
Obturateur : | ||||
- Nom : | Ball Bearing | Type : | central | |
- Marque : | Kodak | |||
- Vitesses : | 1/25 s - 1/50 s - 1/100 s | Pose : | B, T | |
- Retardateur : | non | |||
- Armement : | auto-armant | |||
Film, plaque : | ||||
- Compte-vues 1 : | fenêtre inactinique avec cache | |||
- Protection 2 expos : | non | |||
- Avancement : | clé | |||
Flash : | ||||
- Synchro : | non | |||
- Flash interne : | non | |||
Posemètre : | ||||
- Type : | sans | |||
- Plage : | - | |||
- Automatisme : | manuel | |||
Mise au point : | ||||

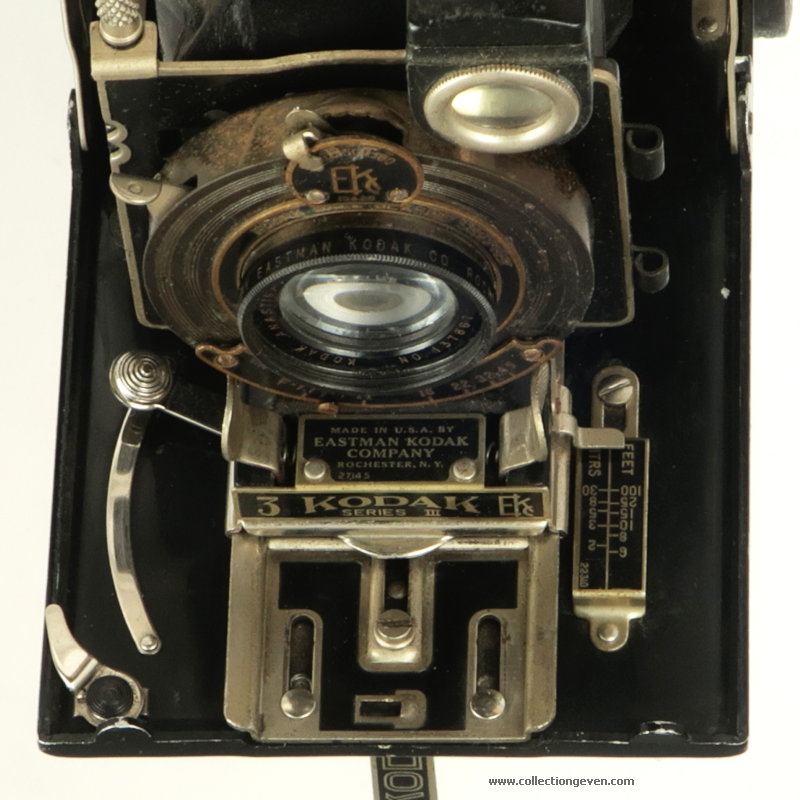

- Type : | déplacement de la platine + crémaillère | Minimum : | 2 m (6 ft) | |
- Télémètre : | non | |||
Viseurs : | ||||
- Viseur 1 : | viseur redresseur clair pivotant | |||
Autres : | ||||
Niveau à bulle : | non | |||
Porte-acc. 1 : | autre (20) | Porte-acc. 2 : | - | |
Écrou de pied : | 1/4 " (x2) | |||
Déc. vertical : | oui | Horizontal : | - | |
Bascule avant : | - | Arrière : | - |
Commentaires : | (20) : support pour le stylet à gauche de l'objectif. | |||
Liens web : | Sur le site collection-appareils.fr : voir ici | |||
- |
Appareil présenté : | ||||
N° de série : | 1539 | |||
N° objectif : | 137867 | N° obturateur : | (27143) | |
Accessoires : | - | |||
Notice : | - | |||
Commentaires : | - | |||
N° inventaire : | APP3230_01 |
