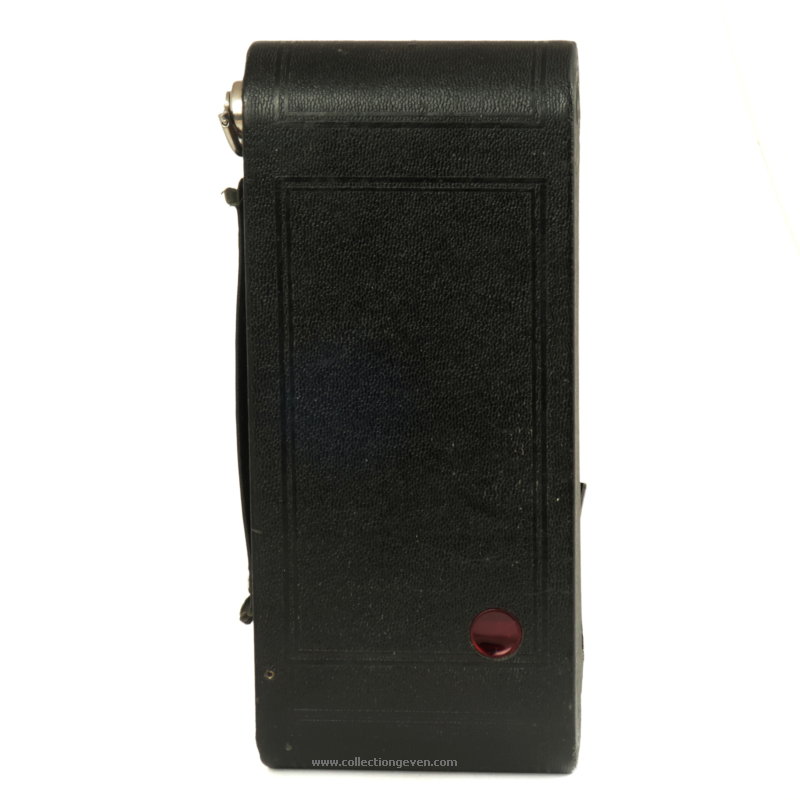

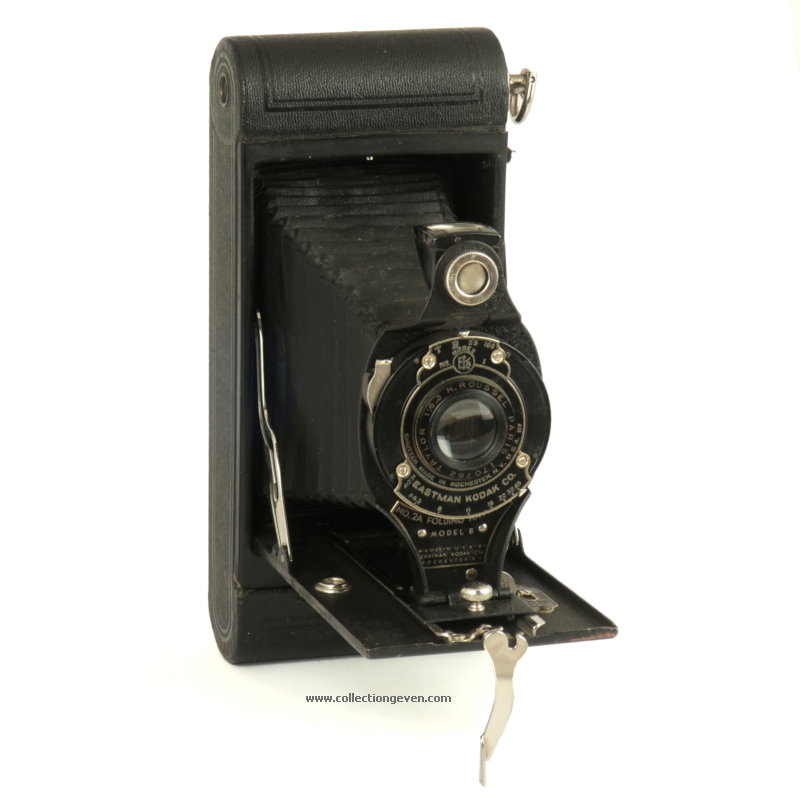

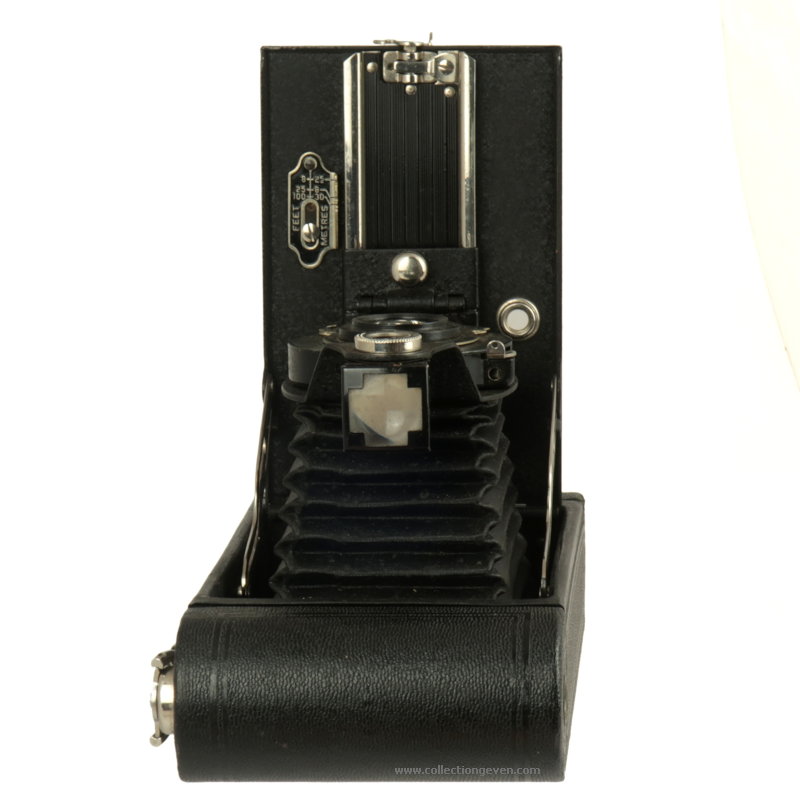

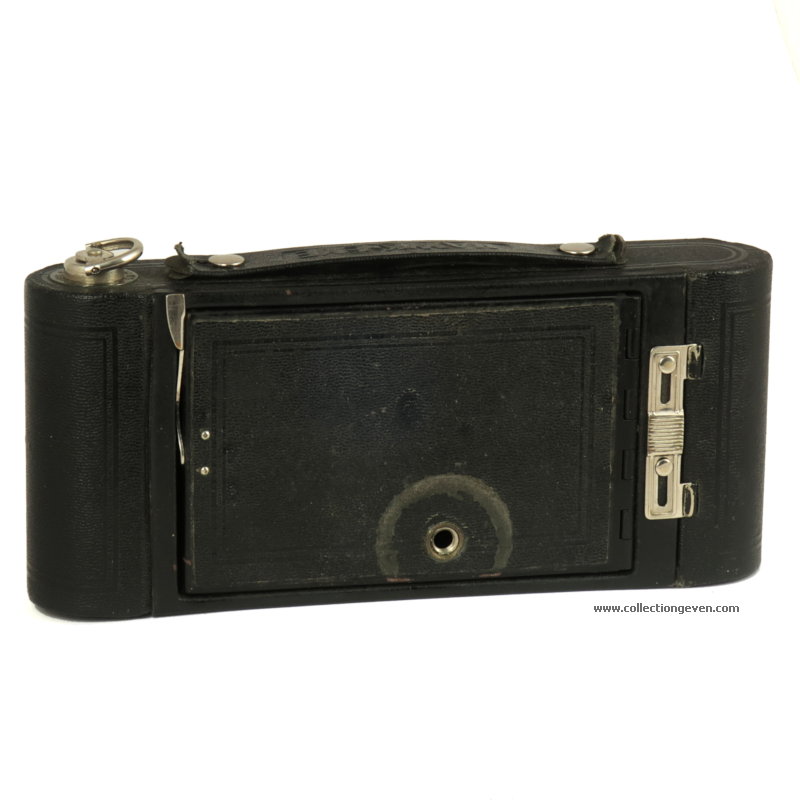

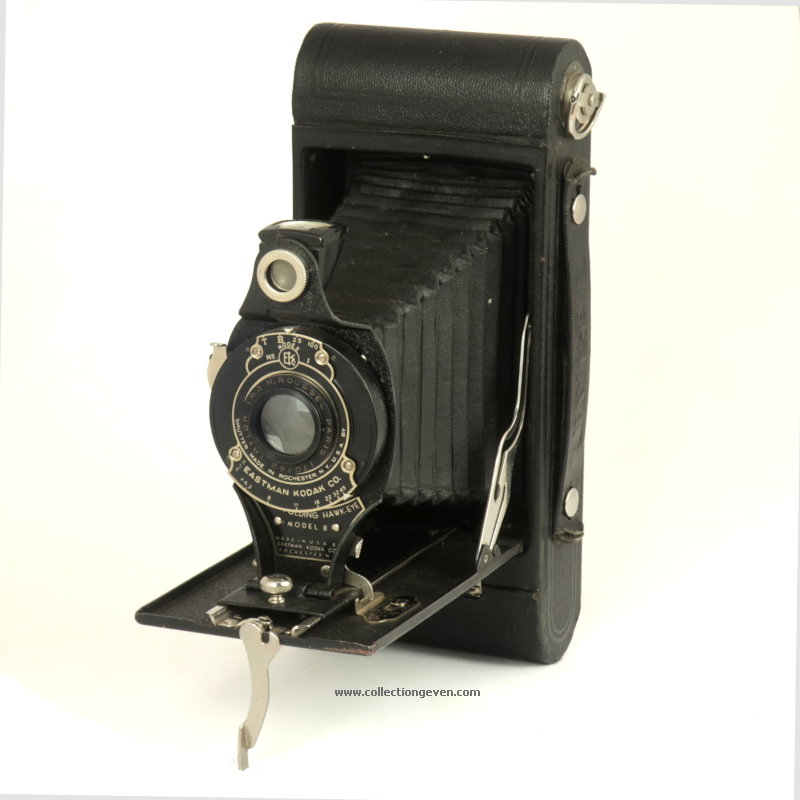

N° 2A Folding Hawk-Eye model B (Kodak) - 1928
Trylor 1:6,3 - Kodex
(APP3252)
Trylor 1:6,3 - Kodex
(APP3252)
Nom : | N° 2A Folding Hawk-Eye model B | |||
Marque : | KODAK | Fabricant : | Eastman Kodak Co. | |
Publicité : | - | |||
Pays : | États-Unis | |||
Date de début : | c. 1928 | Date de fin : | c. 1930 | |
Type : | folding 6,5 x 11 (FMFP) | |||
Dimensions, fermé : | 96 x 41 x 170 mm | Ouvert : | 96 x 203 x 170 mm | |
Poids : | 807 g | |||
Matière : | métal gainé | Couleur : | noir | |
Surf. sensible : | film 116 | Format : | 6,5 x 11 cm | |

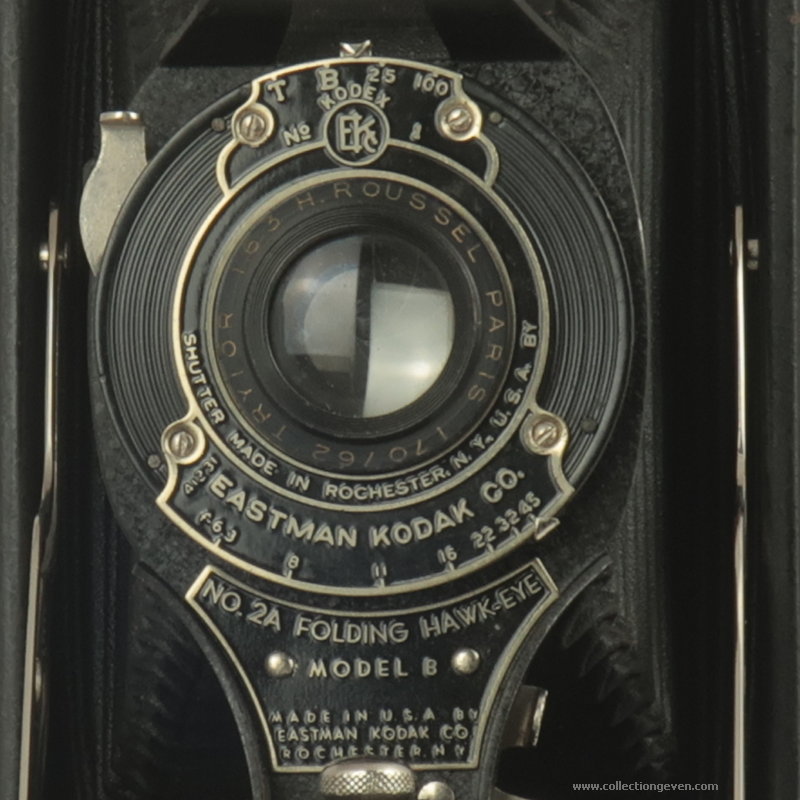

Objectif : | ||||
- Nom : | Trylor | Type : | XXX | |
- Marque : | Roussel | |||
- Ouverture : | 6,3 | Focale : | c. 130 mm | |
- Fixation : | rentrant à soufflet | Monture : | non interchangeable | |
Diaphragme : | ||||
- Type : | iris | |||
- Ouverture : | 6,3 à 45 | |||
Obturateur : | ||||
- Nom : | Kodex N° 1 (41231) | Type : | central | |
- Marque : | Kodak | |||
- Vitesses : | 1/25 s (38 ms) - 1/100 s (25 ms) | Pose : | B, T | |
- Retardateur : | non | |||
- Armement : | auto-armant | |||
Film, plaque : | ||||
- Compte-vues 1 : | fenêtre inactinique sans cache | |||
- Protection 2 expos : | non | |||
- Avancement : | clé | |||
Flash : | ||||
- Synchro : | non | |||
- Flash interne : | non | |||
Posemètre : | ||||
- Type : | sans | |||
- Plage : | - | |||
- Automatisme : | manuel | |||
Mise au point : | ||||

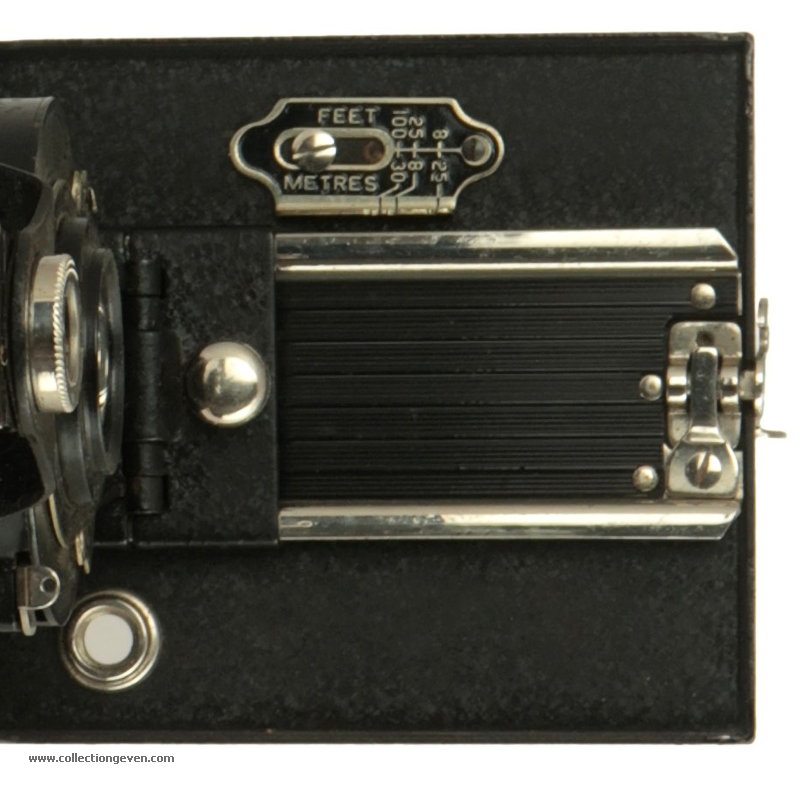

- Type : | déplacement de la platine porte-objectif | Minimum : | 2,5 m (8 ft) | |
- Télémètre : | non | |||
Viseurs : | ||||
- Viseur 1 : | viseur redresseur clair pivotant | |||
Autres : | ||||
Niveau à bulle : | non | |||
Porte-acc. 1 : | - | Porte-acc. 2 : | - | |
Écrou de pied : | 1/4 " | |||
Déc. vertical : | - | Horizontal : | - | |
Bascule avant : | - | Arrière : | - |
Commentaires : | - | |||
Liens web : | ||||
- |
Appareil présenté : | ||||
N° de série : | - | |||
N° objectif : | 170762 | N° obturateur : | - | |

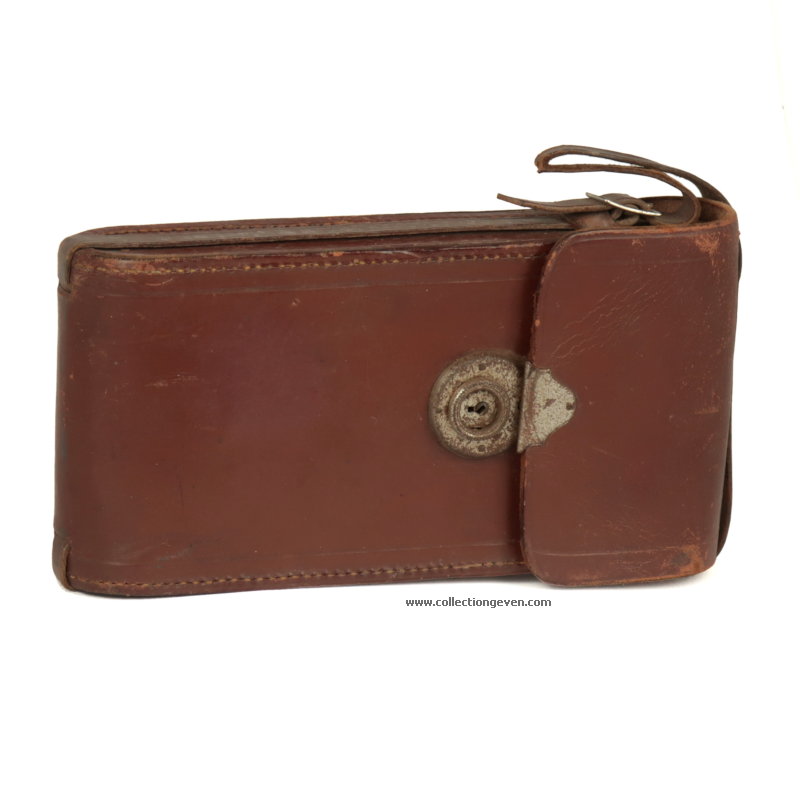

Accessoires : | Sacoche. Déclencheur souple. | |||

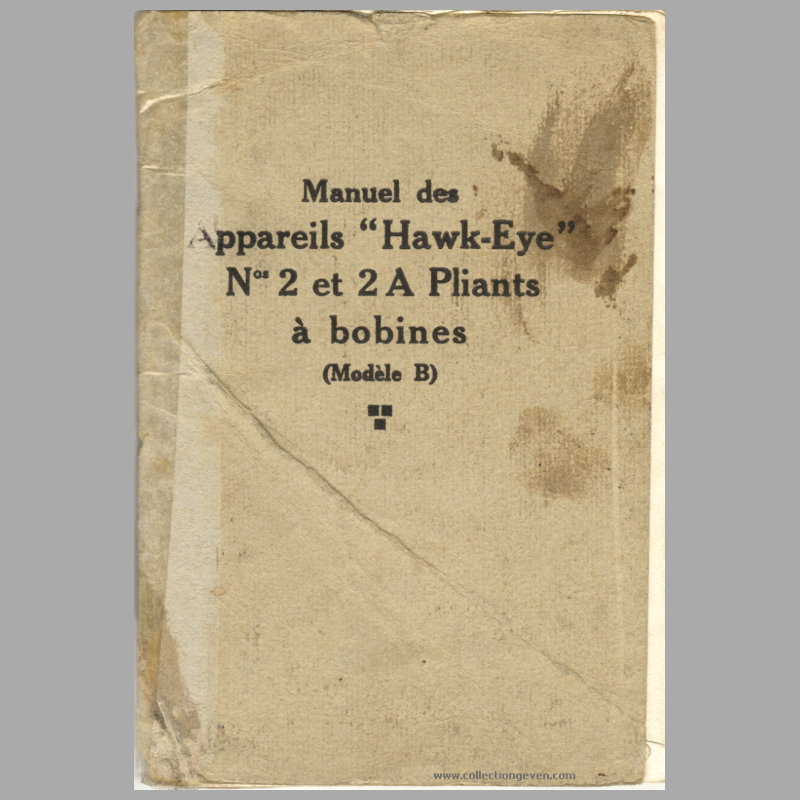

Notice : | ||||
Commentaires : | - | |||
N° inventaire : | APP3252_01 |
