Flexilette (Agfa) - 1960
(APP3375)
(APP3375)

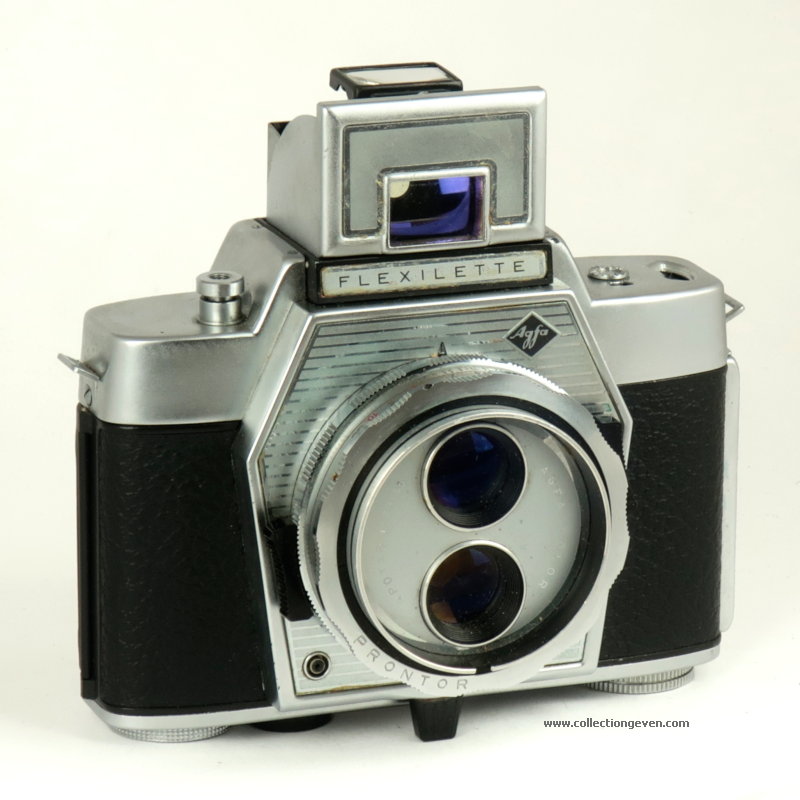

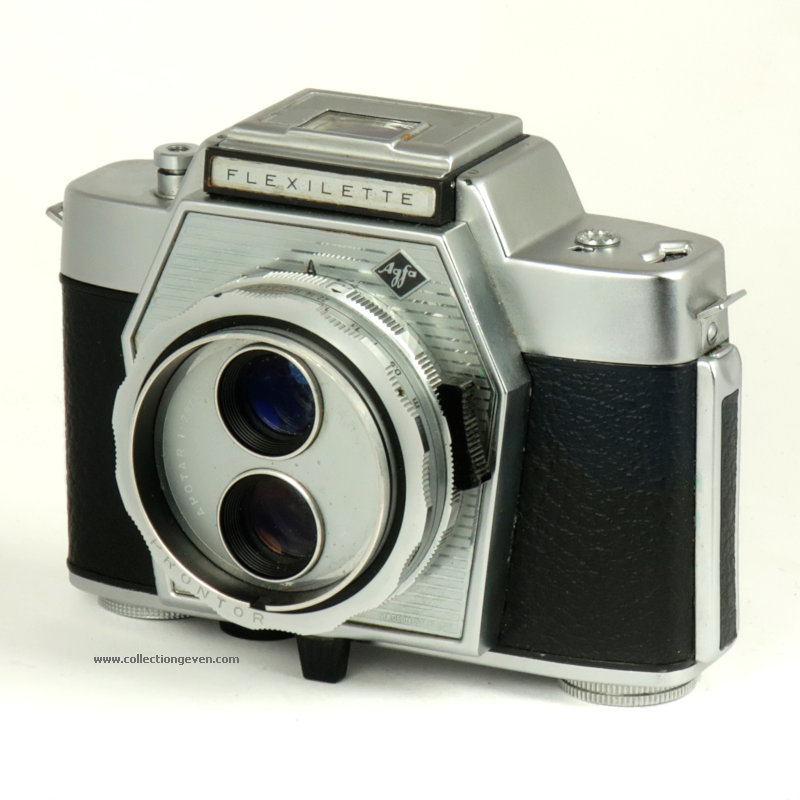

Ce réflex bi-objectifs pour film 135 (24 x 36 mm) a également été vendu sous le nom de « Agfa Reflex ». Il est équipé d'un objectif Apotar 1:2,8 de 45 mm et d'un obturateur Prontor au 1/500 s. |
Nom : | Flexilette | |||
Marque : | AGFA | Fabricant : | Agfa Camera-Werk | |
Publicité : | - | |||
Pays : | Allemagne | |||
Date de début : | c. 1960 | Date de fin : | c. 1961 | |
Type : | réflex bi-objectifs 24 x 36 (BFFH) | |||
Dimensions, fermé : | 143 x 101 x 65 mm | Ouvert : | 143 x 132 x 65 mm (viseur ouvert) | |
Poids : | 757 g | |||
Matière : | métal gainé et chromé | Couleur : | noir, gris | |
Surf. sensible : | film 135 | Format : | 24 x 36 mm | |
Objectif : | ||||
- Nom : | Color-Apotar | Type : | 3 éléments en 3 groupes | |
- Marque : | Agfa | |||
- Ouverture : | 2,8 | Focale : | 45 mm | |
- Fixation : | fixe | Monture : | non interchangeable | |
Diaphragme : | ||||
- Type : | iris | |||
- Ouverture : | 2,8 à 22 | |||
Obturateur : | ||||
- Nom : | Prontor | Type : | central | |
- Marque : | Gauthier | |||
- Vitesses : | 1 s à 1/500 s | Pose : | B | |
- Retardateur : | non | |||
- Armement : | couplé à l'avance du film | |||
Film, plaque : | ||||
- Compte-vues 1 : | compteur 36 vues | |||
- Protection 2 expos : | oui | |||
- Avancement : | levier | |||
Flash : | ||||
- Synchro : | X, M | |||
- Flash interne : | non | |||
Posemètre : | ||||
- Type : | sans | |||
- Plage : | - | |||
- Automatisme : | manuel | |||
Mise au point : | ||||
- Type : | frontale | Minimum : | 90 cm | |
- Télémètre : | réflex TLR | |||
Viseurs : | ||||
- Viseur 1 : | réflex TLR couplé | |||
- Viseur 2 : | galilée pliant | |||
Autres : | ||||
Niveau à bulle : | non | |||
Porte-acc. 1 : | - | Porte-acc. 2 : | - | |
Écrou de pied : | 1/4 " | |||
Déc. vertical : | - | Horizontal : | - | |
Bascule avant : | - | Arrière : | - |
Commentaires : | Viseur TTL : dépoli, stigmomètre, loupe de visée. Visée à hauteur d'œil ou de poitrine. Rappels dans le viseur : -. Appareils 24 x 36 bi-objectifs : voir ici. | |||
Liens web : | Sur le site collection-appareils.fr : voir ici | |||
- |
Appareil présenté : | ||||

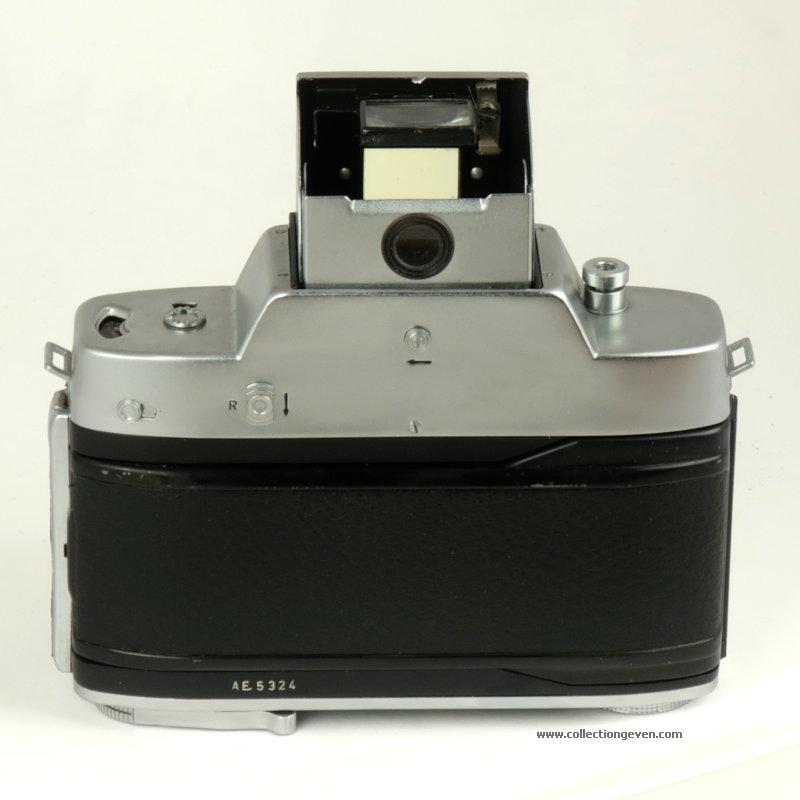

N° de série : | AE 5324 | |||
N° objectif : | - | N° obturateur : | - | |

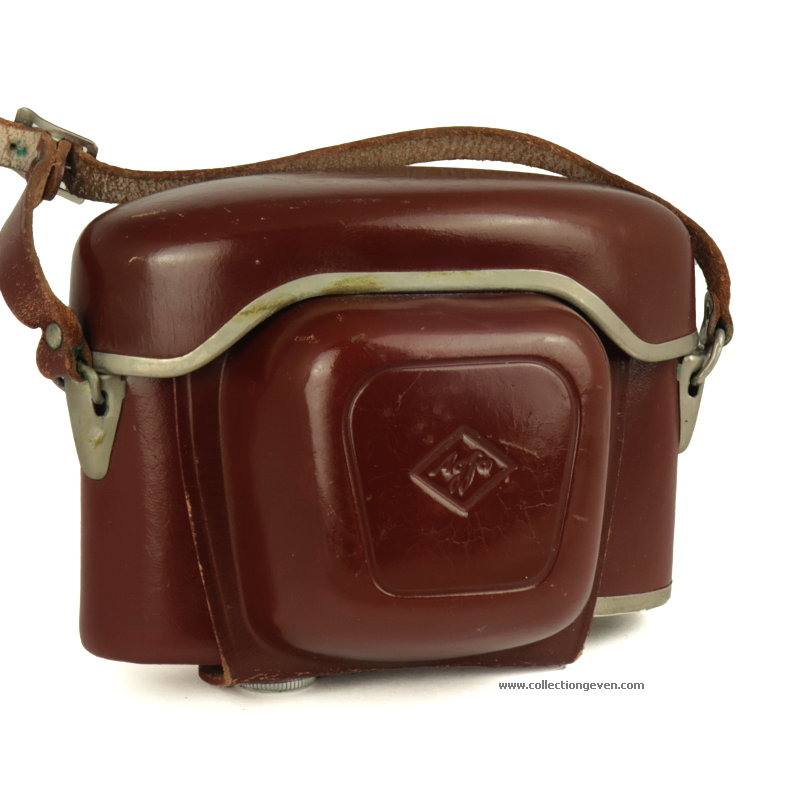

Accessoires : | Sac tout-prêt marron Agfa 6105. | |||
Notice : | - | |||
Commentaires : | - | |||
N° inventaire : | APP3375_01 |
